Doran 2200 Industrial Bench Scales and Custom Weighing Systems

Celebrating over 25 years in business

PRODUCTS

Doran Bench Scales with 2200 Digital Readout are available at Central Carolina Scale Electronic Scales Catalog

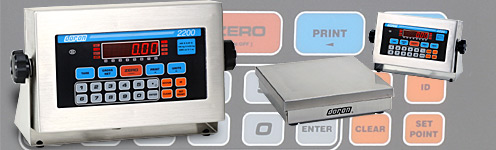

2200 STAINLESS STEEL DIGITAL BENCH SCALE

Introducing the all-new Doran 2200 Advanced Weight Indicator / Bench Scale. Building upon the widely successful Excel Series scales, the 2200 has even more standard features, powerful software and advanced communications options. This advanced technology, combined with an extremely durable and rugged design, make the 2200 the best choice for demanding scale applications.

Full Function Keypad
The Model 2200 puts you in complete control of the advanced functions with its intuitive keypad. The easy to use keypad allows for simple entry of digital tare, time and date, accumulator, eight product ID's, eight setpoint outputs and eight grade values.

Powerful Software Features
Much more than a simple weight indicator, the software in the 2200 is capable of functions such as programmable data communication, product grading, peak hold, multiple ID numbers, accumulator, and counter.

Advanced Communications and Control
Connect the 2200 to your network or other devices with Doran's wired Ethernet, Wireless Ethernet (802.11b), Modbus/TCP, USB, 4-20mA, RS-485, or Fiber Optic options. Control your process with optional relays to provide a turnkey system. Communicate with the flexible and user defined data strings to include tare, product ID and time and date. Send your data to a barcode printer or insert it directly into an Excel spreadsheet using Doran's optional Excelerator Data Collection software.

The new 2200 is avaible as either a complete scale system or a stand alone Digital Weight Indicator. Please look below for available base sizes, capacities, and the wide variety of options that are offered with the 2200

2200 STAINLESS STEEL DIGITAL BENCH SCALE

Model	Capacity x Readability (lbs)	Capacity x Readability (kg)	Capacity x Readability (oz)
22002	2 x 0.0005	0.9 x 0.2g	32 x 0.01	10"x10" Base
22005	5 x 0.001	2.3 x 0.5g	80 x 0.02
22010	10 x 0.002	4.5 x 1g	160 x 0.05
22025	25 x 0.005	11.3 x 2g	400 x 0.1
22050	50 x 0.01	22.7 x 5g	800 x 0.2

22050/12	50 x 0.01	22.7 x 5g	800 x 0.2	12"x12" Base
22100/12	100 x 0.02	45 x 10g	1600 x 0.5	12"x12" Base

22050/15	50 x 0.01	22.7 x 5g	800 x 0.2	15"x15" Base
22100/15	100 x 0.02	45 x 10g	1600 x 0.5
22200/15	200 x 0.05	91 x 20g	3200 x 1

APS2200P ALL PURPOSE STAINLESS STEEL SCALE w/ 20" COLUMN

APS22050/15	50 x .01	22.7 x 5g	800 x .2	15"x15" Base
APS22100/15	100 x .02	45 x 10g	1600 x .5
APS22200/15	200 x .05	91 x 20g	3200 x 1

APS22050/18S	50 x .01	22.7 x 5g	800 x .2	18"x18" Base
APS22100/18S	100 x .02	45 x 10g	1600 x .5
* APS22150/18S (non NTEP)	150 x .02	68 x 10g	2400 x .5
APS22300/18S	300 x .05	136 x 20g	4800 x 1
